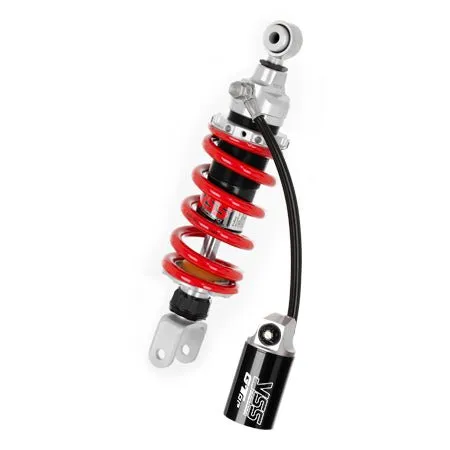

YSS Topline Rear Mono Shock (2019-2023)

Technical Specifications:

• Year: 2019-2023
• Product Group: Topline
• Shock Type: Rear Mono Shock
• Product Type: External Reservoir On Hose Gas Shock
• ABE: Not Applicable

Dimensions:

• Length: 305-315 mm
• Top Diameter: 10x30 mm
• Bottom Diameter: F.40x10 mm
• Spring Dimensions: 56-110-150 mm
• Piston Size: 45 mm
• Shaft Size: 16 mm

Adjustability Features:

• Compression Adjustable:

  • Description: Controller for the compression stage, allowing adjustments for fast or slow movements. Adjustable in 30 steps.

• Thread Spring Preload:

  • Description: Fine-tune the spring tension through a threaded cylindrical shock absorber design. Adjust using an adjustable spring screw and secure the ring with a provided bolt.

• Rebound Adjustable:

  • Description: Control the recovery speed with a volume control knob, needle shaft, Free Bleed oil through hole, and a knob Rebound with a time adjustment dial.

• Length Adjustable:

  • Description: Increase the shock absorber length for customization.
  • Options: Two types - upgradable to 10 mm or adjustable lengths within a range of /- 5 mm.
